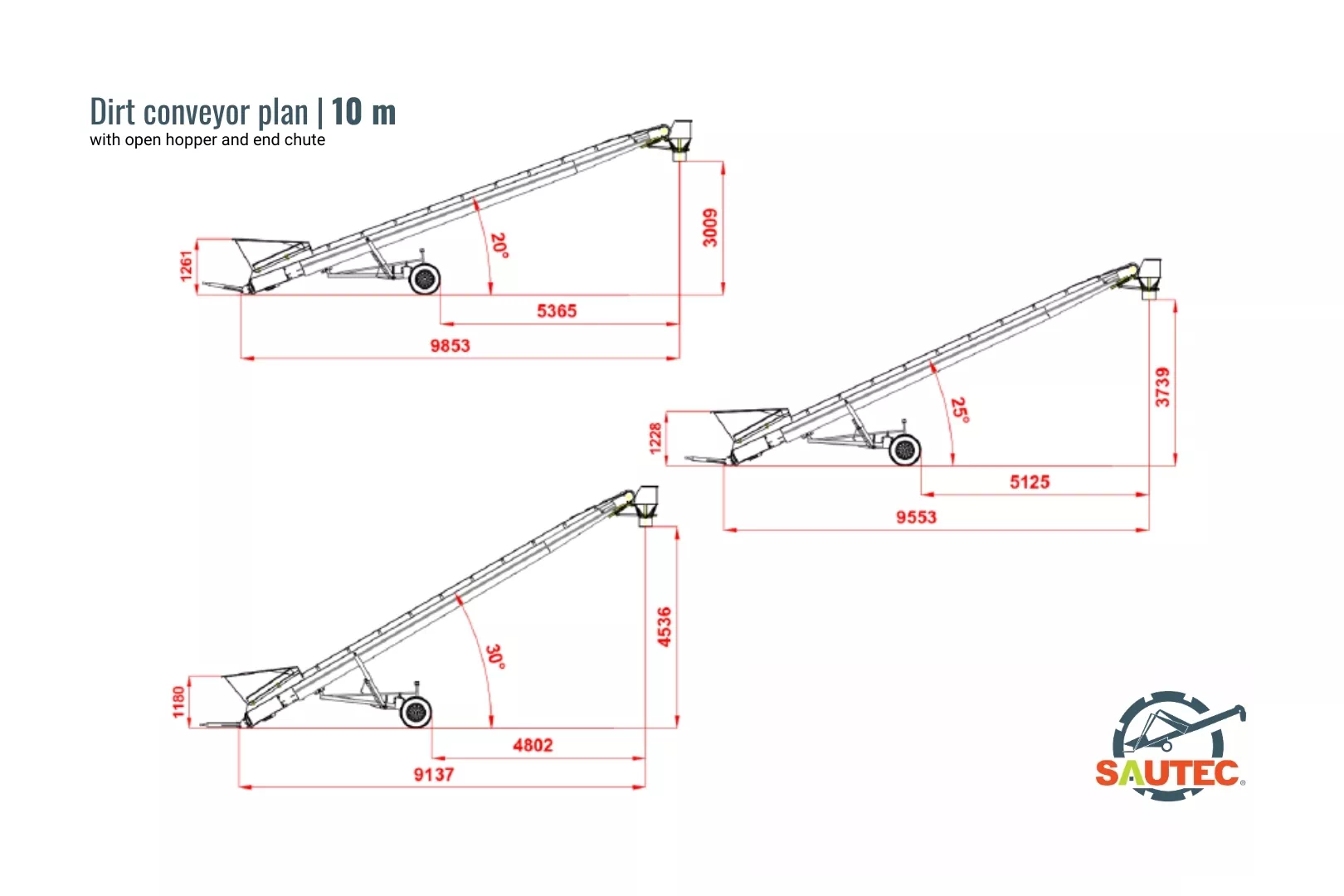

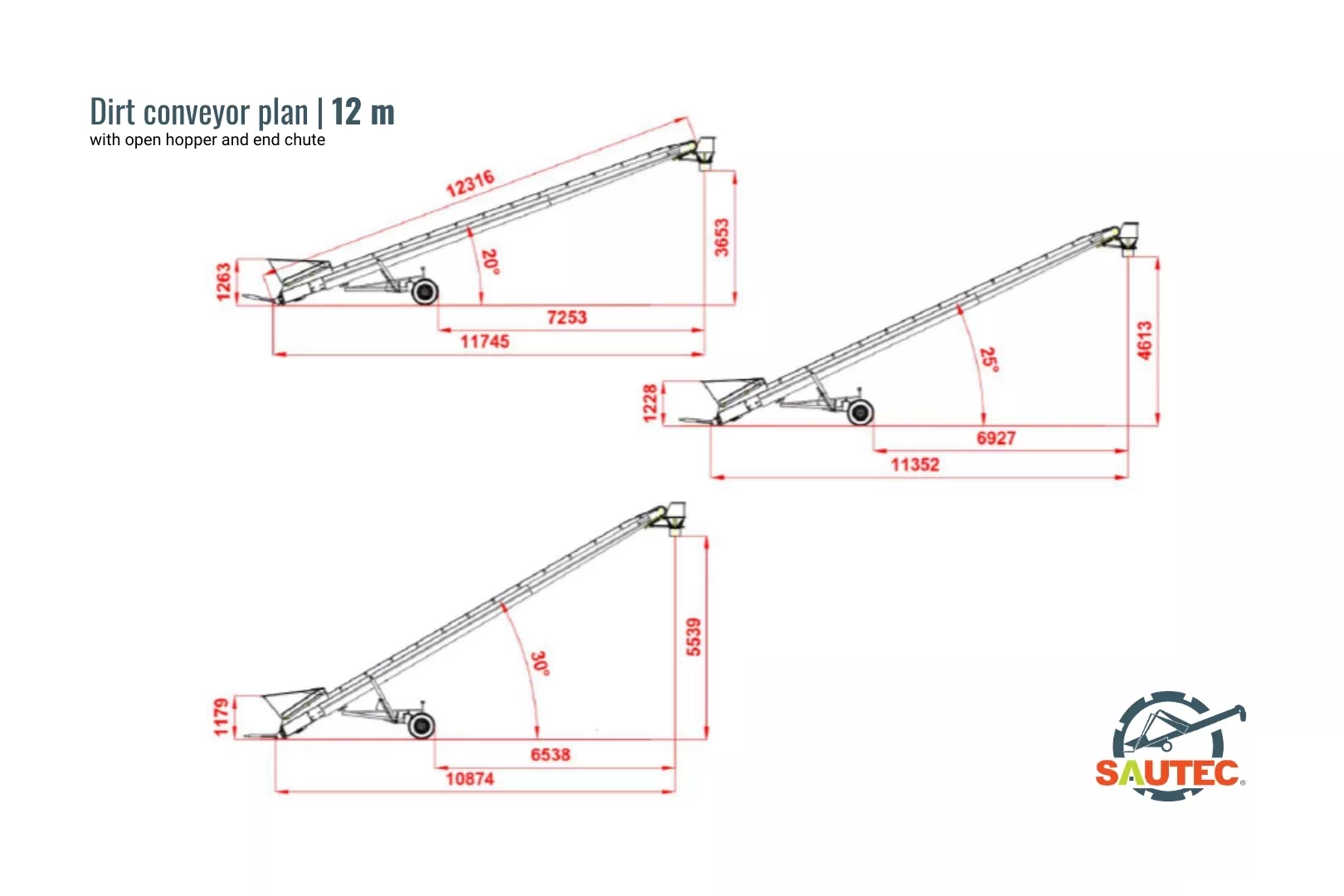

Five lengths are available for purchase and hire: 6 m, 8 m, 10 m, 12 m and 14 m. The choice of length depends mainly on the distance to be covered and the required discharge height. As a general rule, we recommend not exceeding a 25° angle of inclination. For a 14 m conveyor at a 25° angle, the discharge height is 5.5 m. Our team is at your service to determine the most appropriate conveyor length for your needs.

Is the dirt conveyor easy to move around on a construction site?

Yes. The dirt conveyor is equipped with wheels, a drawbar and lifting rings. You can tow or lift the conveyor to move/reposition it easily.

Is training required to operate the dirt conveyor?

No. The dirt conveyor can be used immediately by your teams. Start-up instructions are provided with the equipment.

Dirt conveyor | SAUTEC

Un convoyeur pour terre de la marque sautec utilisé sur un chantier.

Request for an estimate Rent this equipment

Home » Products » Dirt conveyor

You won't find a better solution for the continuous transfer of dirt and other materials on your construction sites.

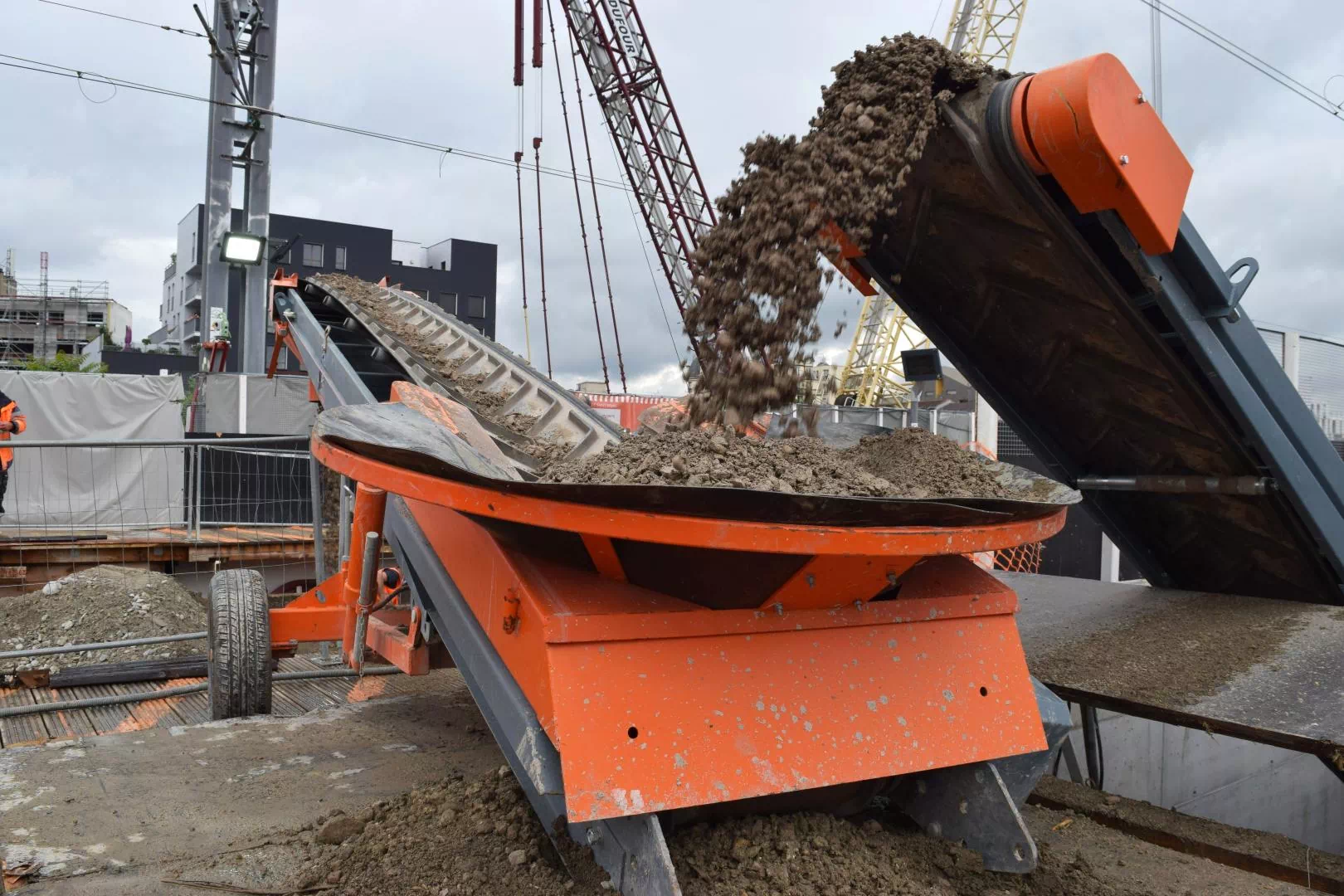

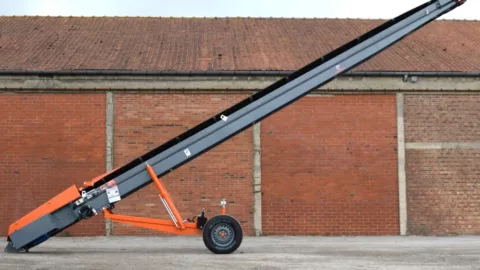

The dirt conveyor is a professional equipment designed for the continuous transfer and removal of bulk materials on construction sites. It offers the perfect balance between robustness and versatility.

Without complex technology, the equipment ensures maximum availability and reliability in even the most demanding construction situations.

Mobile, equipped with a robust rubber belt, and available in several sizes, the dirt conveyor is adapted to a lot of tasks such as:

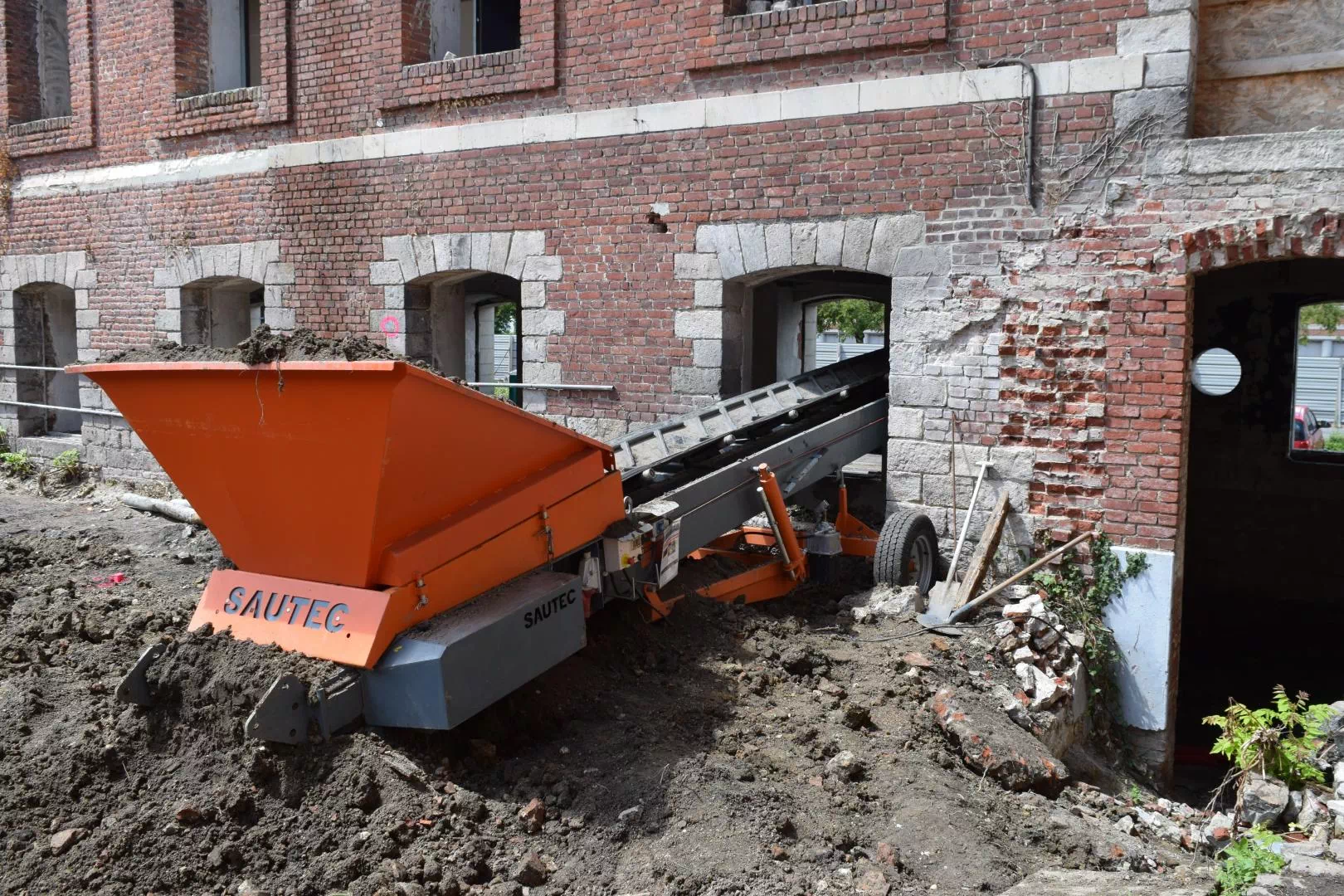

Remove soil from an enclosed courtyard by passing through a building being renovated.

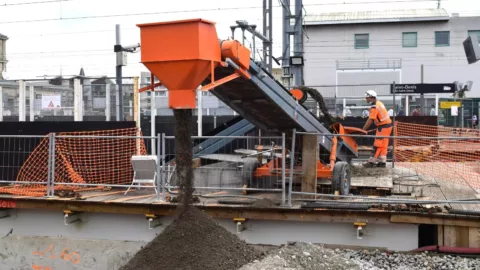

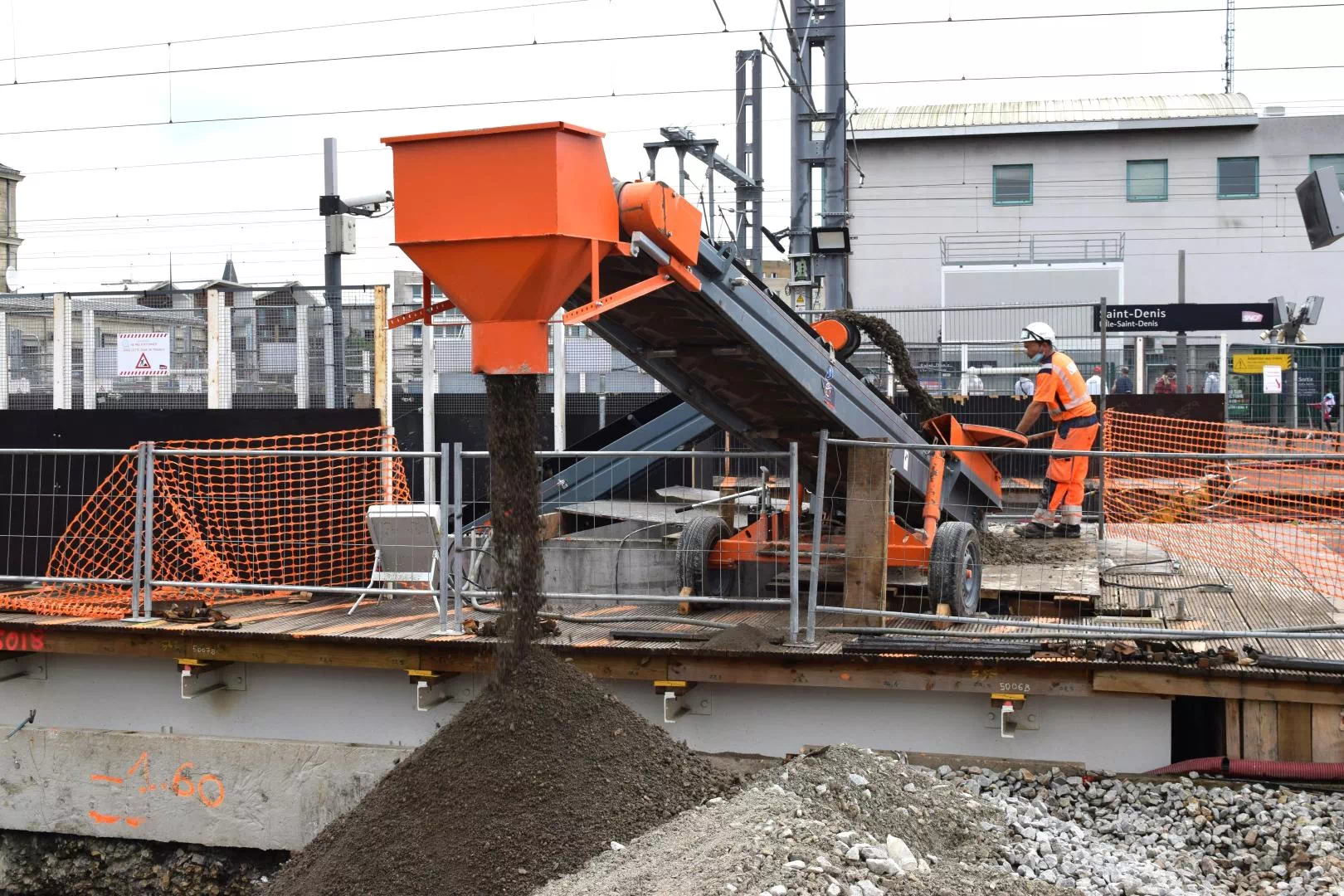

Carry soil and cement aggregate through underground acces points to raise railway platforms.
Cross or bypass obstacles (walls, fences, etc.) thanks to the hydraulically adjustable angle.
Transport materials to areas where traditional machinery cannot operate.

Estimate

Rental

More infos
Tech. datas
Options
FAQ

More infos

A strategic position in our material handling range.

Our range of material handling solutions for construction professionals is based on three complementary ranges:

Portable conveyor: the lightweight range for confined spaces and underground work.
Dirt conveyor: the intermediate range, combining performance and versatility, for challenging constructions sites.
Concrete conveyor: the robust range for intensive levelling work and backfilling work.

The advantages of the dirt conveyor for your construction sites.

Mobile: frame equipped with pneumatic wheels and a drawbar for easy movement on the construction site.
Hydraulic tilt: hydraulic cylinder system for precise and secure adjustment of the conveyor’s tilt angle, reaching up to 6 m in height.
400 V three-phase electric motor: motor adapted to professional applications. Reduces the site’s carbon footprint.
Versatility: 600 mm wide reinforced rubber belt with chevrons for conveying all types of bulk products.

The most complete range of dirt conveyors on the market.

With 5 lengths available (from 6 m to 14 m), the dirt conveyor offers the greatest diversity in our catalogue. This wide range of choices guarantees a perfectly sized solution for every job site configuration.

A wide range of accessories are available to optimize use (see the “option” section).

Availability: purchase and hire of dirt conveyors.

Dirt conveyors are available in stock and can be purchased or hired.

Our dirt conveyors are delivered directly to your site, ready for use. Our technical sales representative will help you find the equipment best suited to your needs and the constraints of your site.

Tech. datas

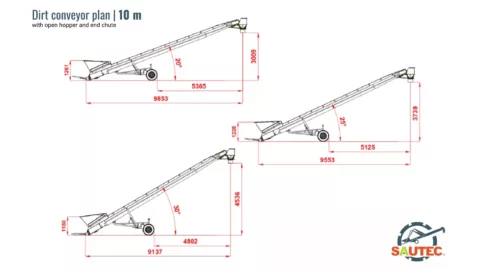

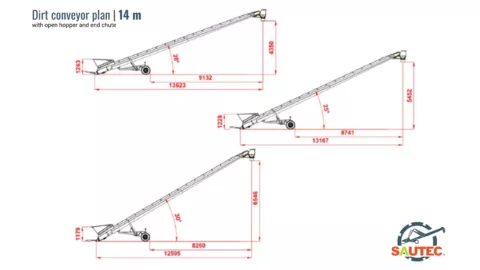

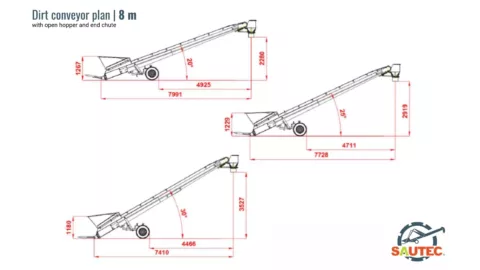

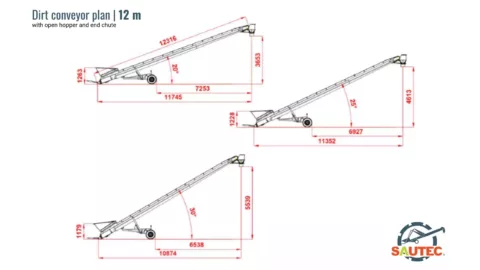

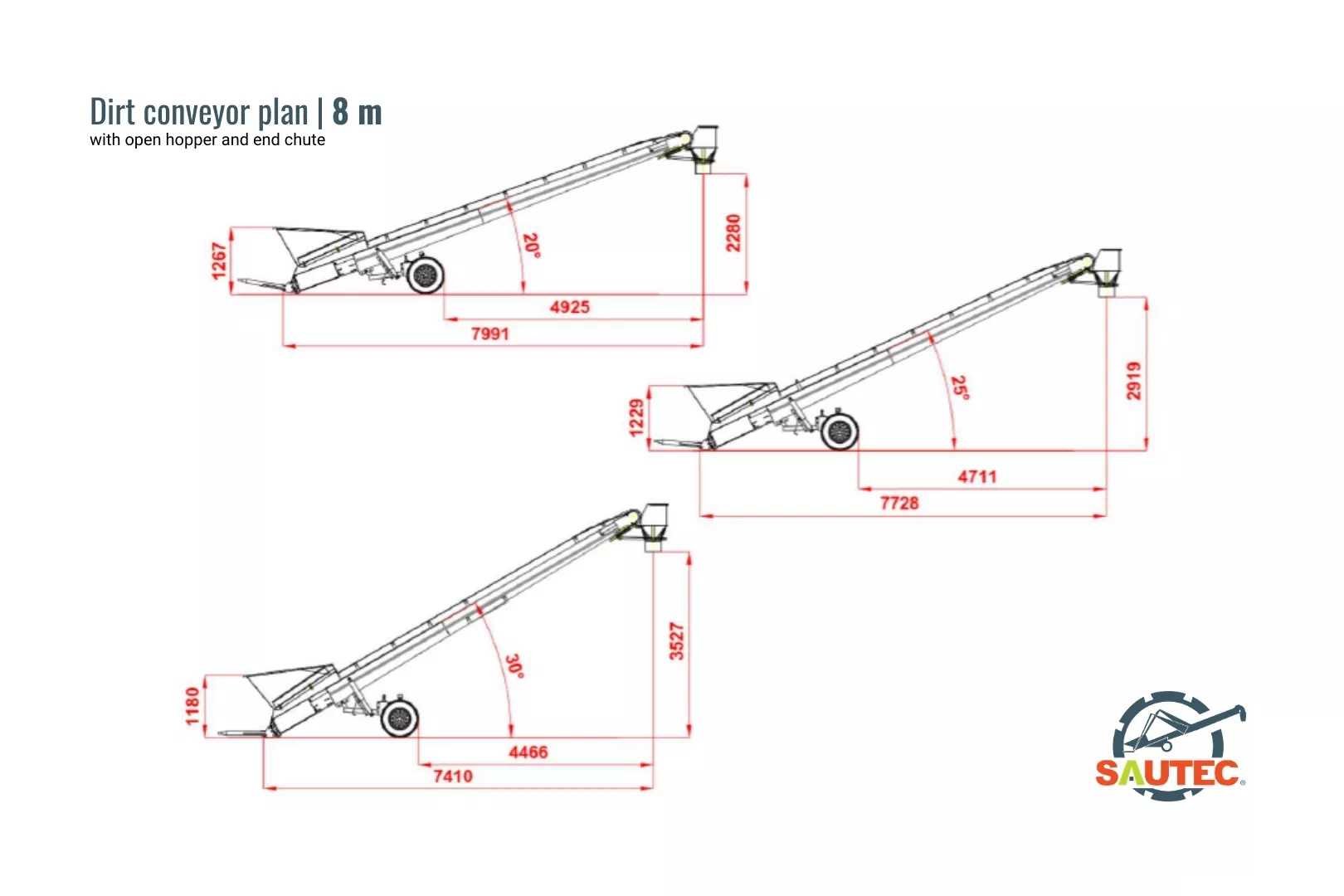

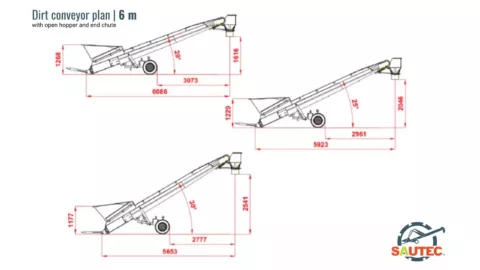

Available lengths: 6 m, 8 m, 10 m, 12 m et 14 m.
Speed band: 90 m/min or 120 m/min.
Capacity: determined based on the nature of the product, its characteristics, the belt speed and the angle of inclination of the conveyor.
Rubber belt with a width of 600 mm and 32 mm high chevrons.
Mobile equipment with pneumatic road equipment and a drawbar.

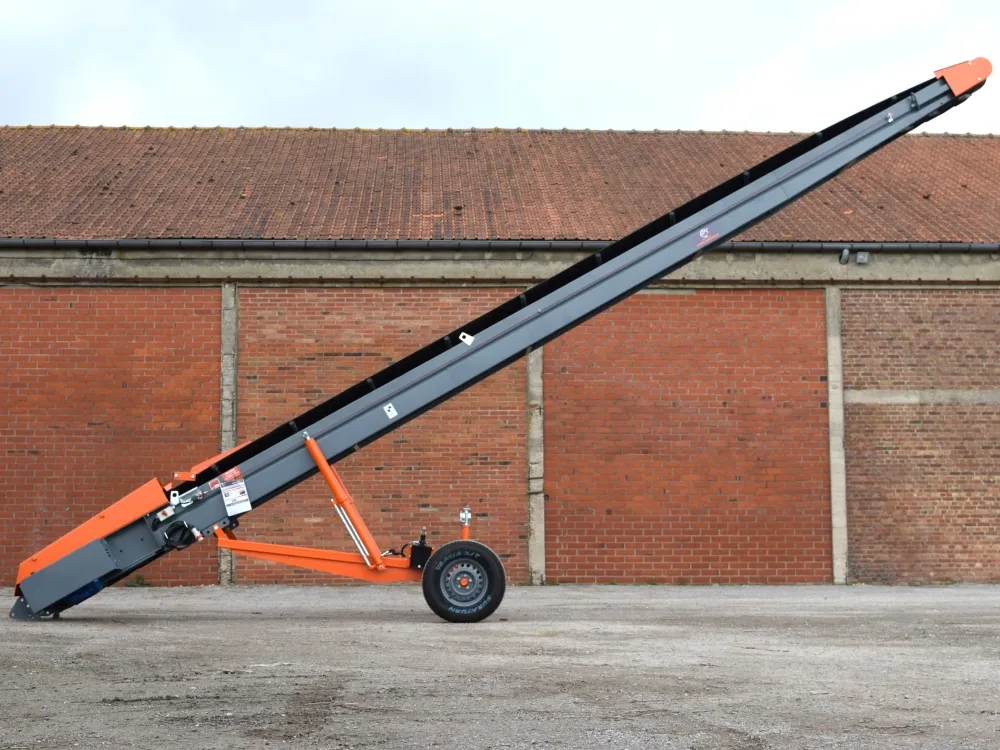

Adjustable tilt by height adjustment with 2 hydraulic cylinders operated with a manual pump.
400 V hollow-shaft gear motors with a case including thermal protection, an on/off button, an emergency stop button and two-way emergency stop cable.
Rubber-coated drive drum with removable hub.
Smooth return drum with removable hub.
10m power cable with 16A 4-pin 3P + T socket with phase inverter.
Protection of return drum for operator safety.
Lifting plate with indication of weight and center of gravity for safety during unloading
Painted steel assembly
Complies with EC standards according to directive 2006/42 EC Annex II-1-A on stand-alone aquipment

Options

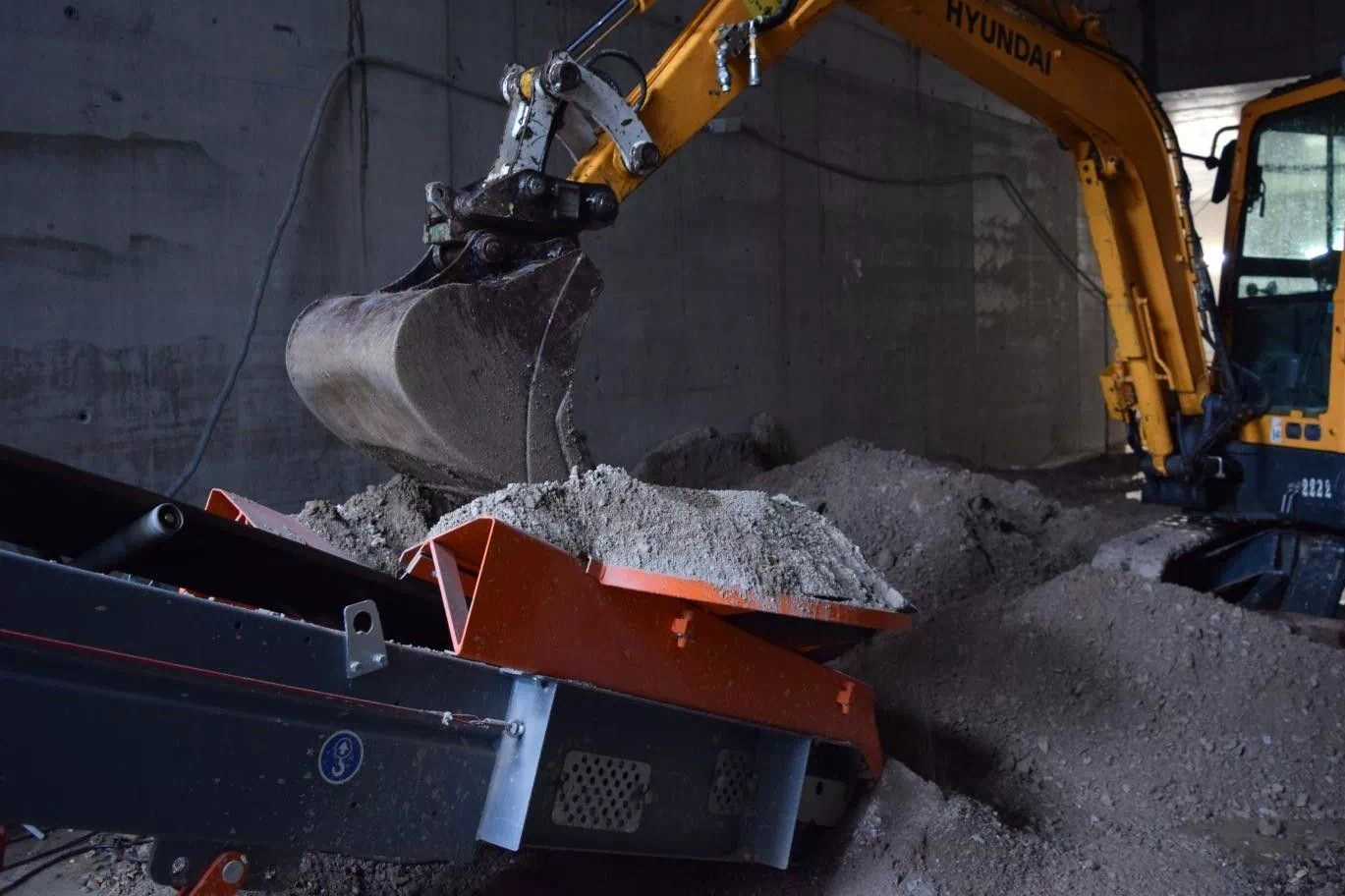

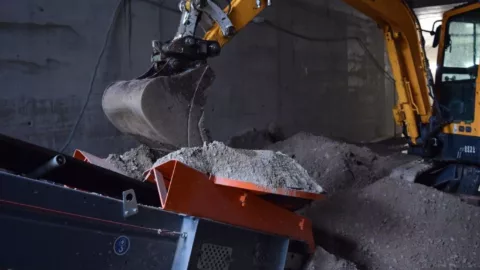

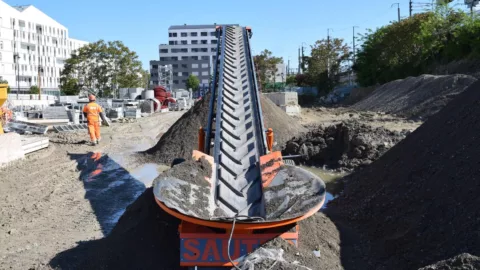

Round hopper

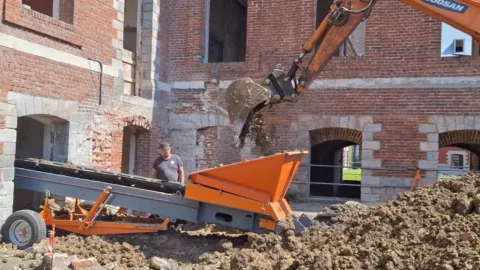

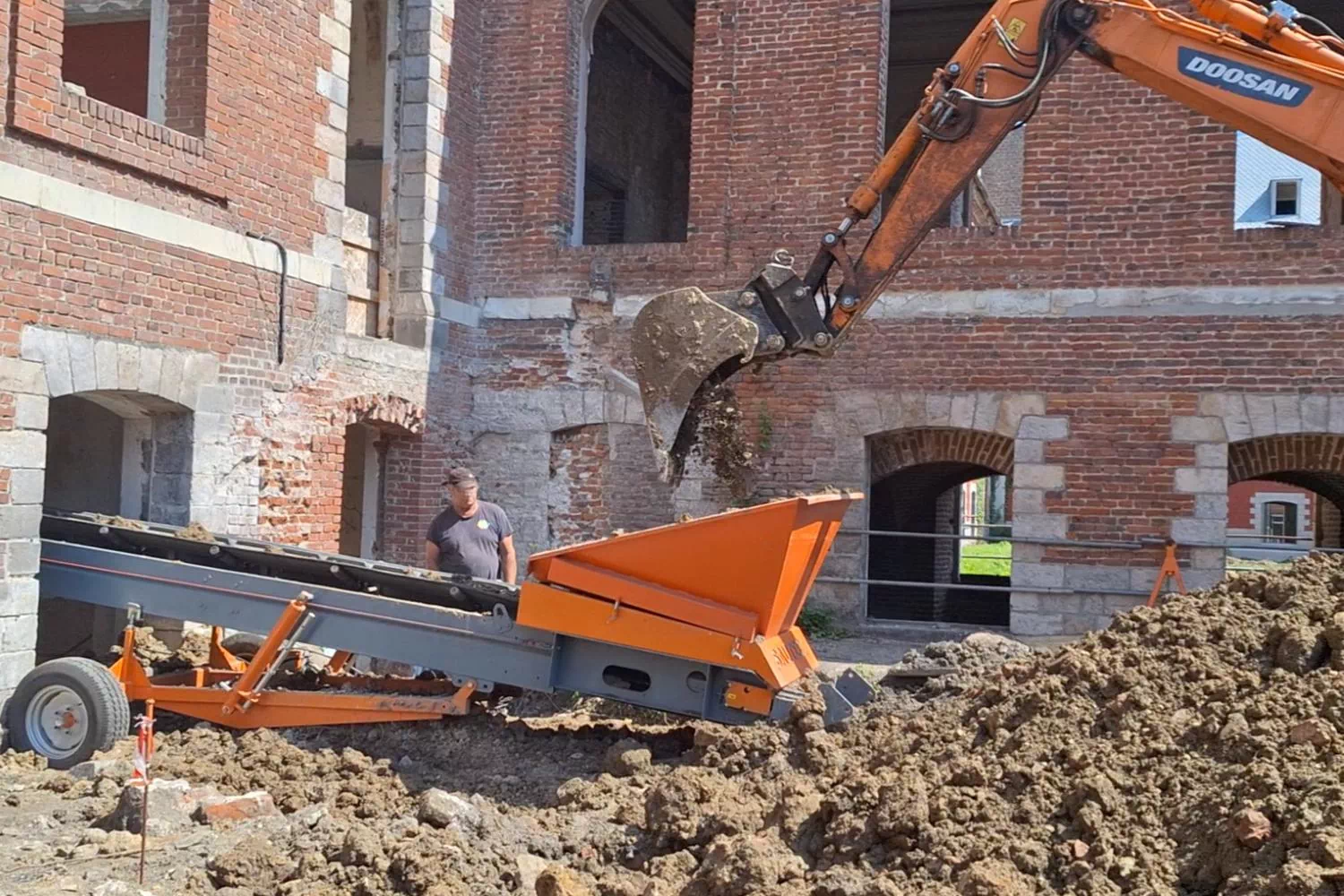

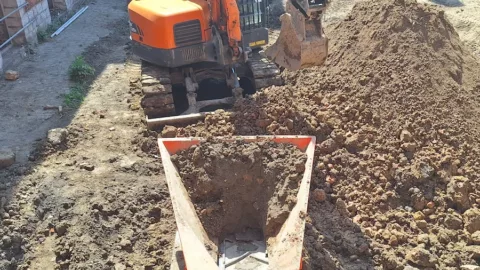

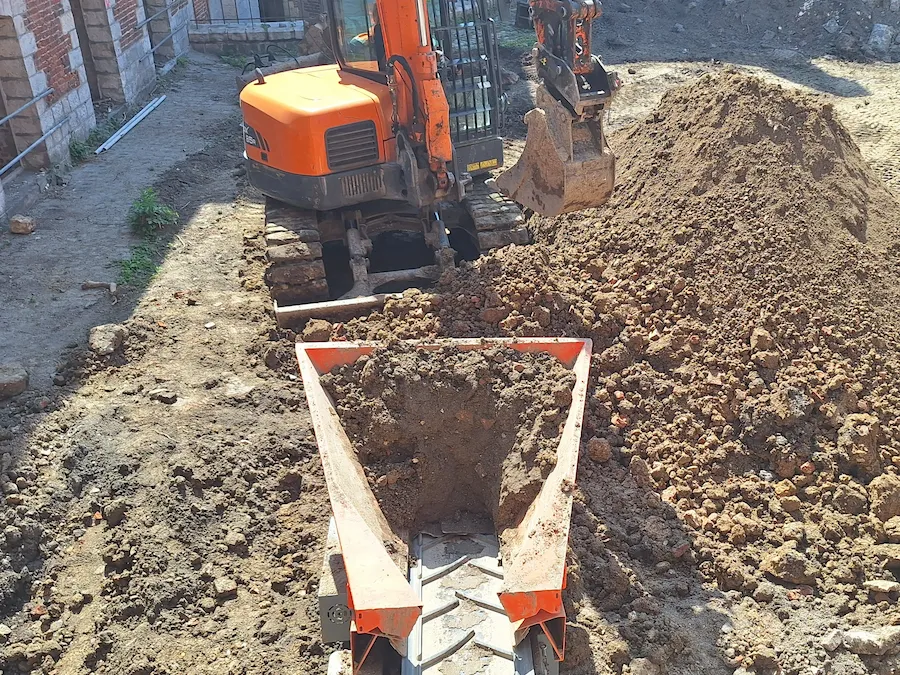

Open hopper

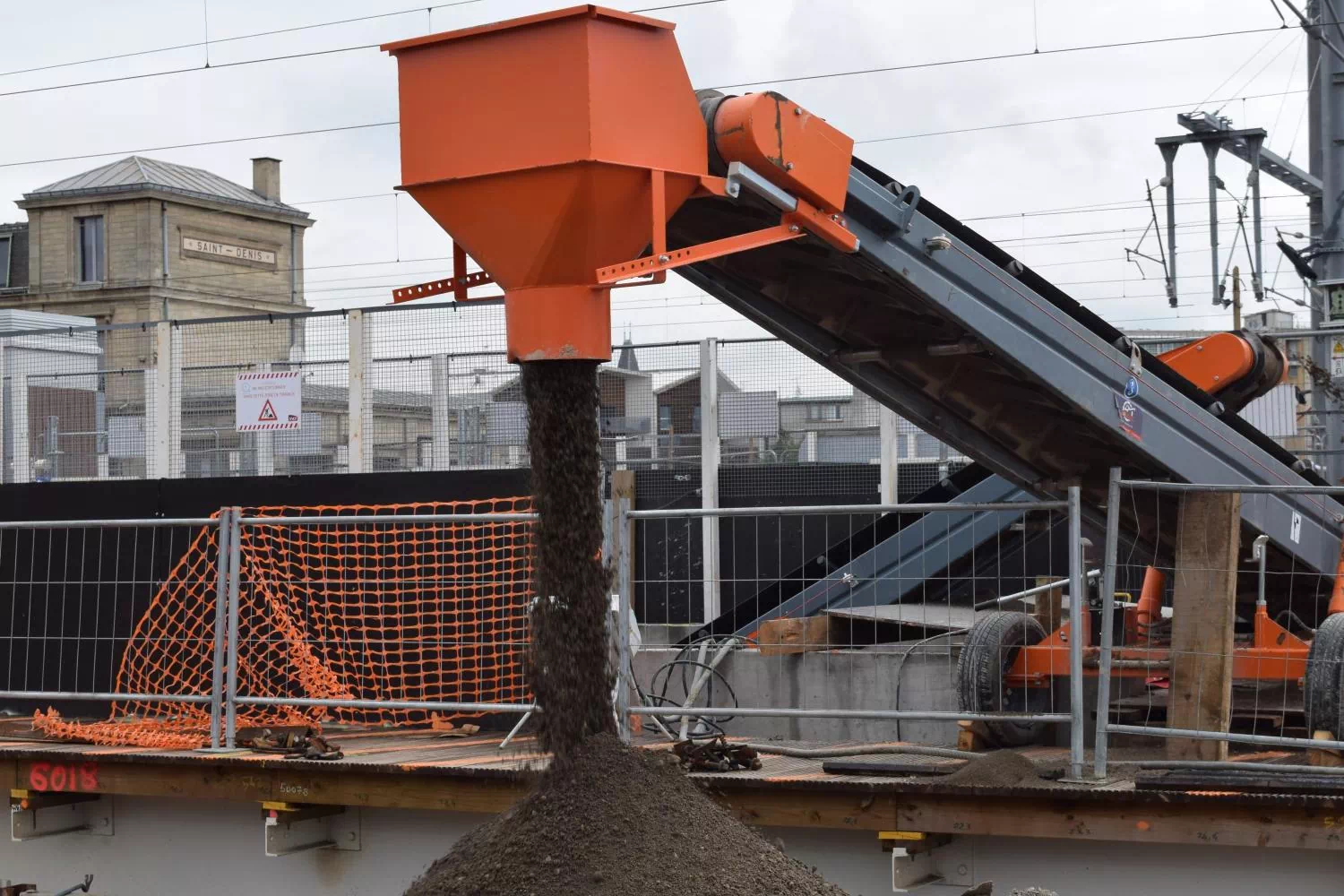

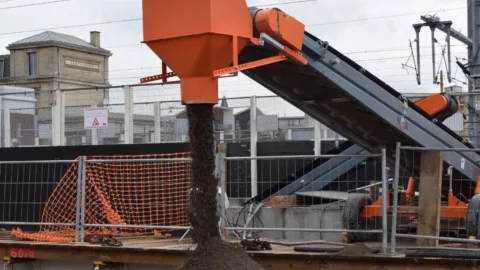

End chute DN 500

Hoppers
- Round hopper
- Open hopper
End chute
- End chute DN 500

Frequently Asked Questions

What is a dirt conveyor?
A dirt conveyor is a motorised belt conveyor designed to continuously transfer soil and other bulk materials.
What types of materials can be transported with a dirt conveyor?
You can use the dirt conveyor for a wide variety of materials such as soil, sand, gravel, small rubble and even waste. As the conveyor is equipped with a belt with chevrons, it is important that the product being transported is not sticky. For larger materials, the construction conveyor is more appropriate.
What lengths are available and how do you choose the right size?

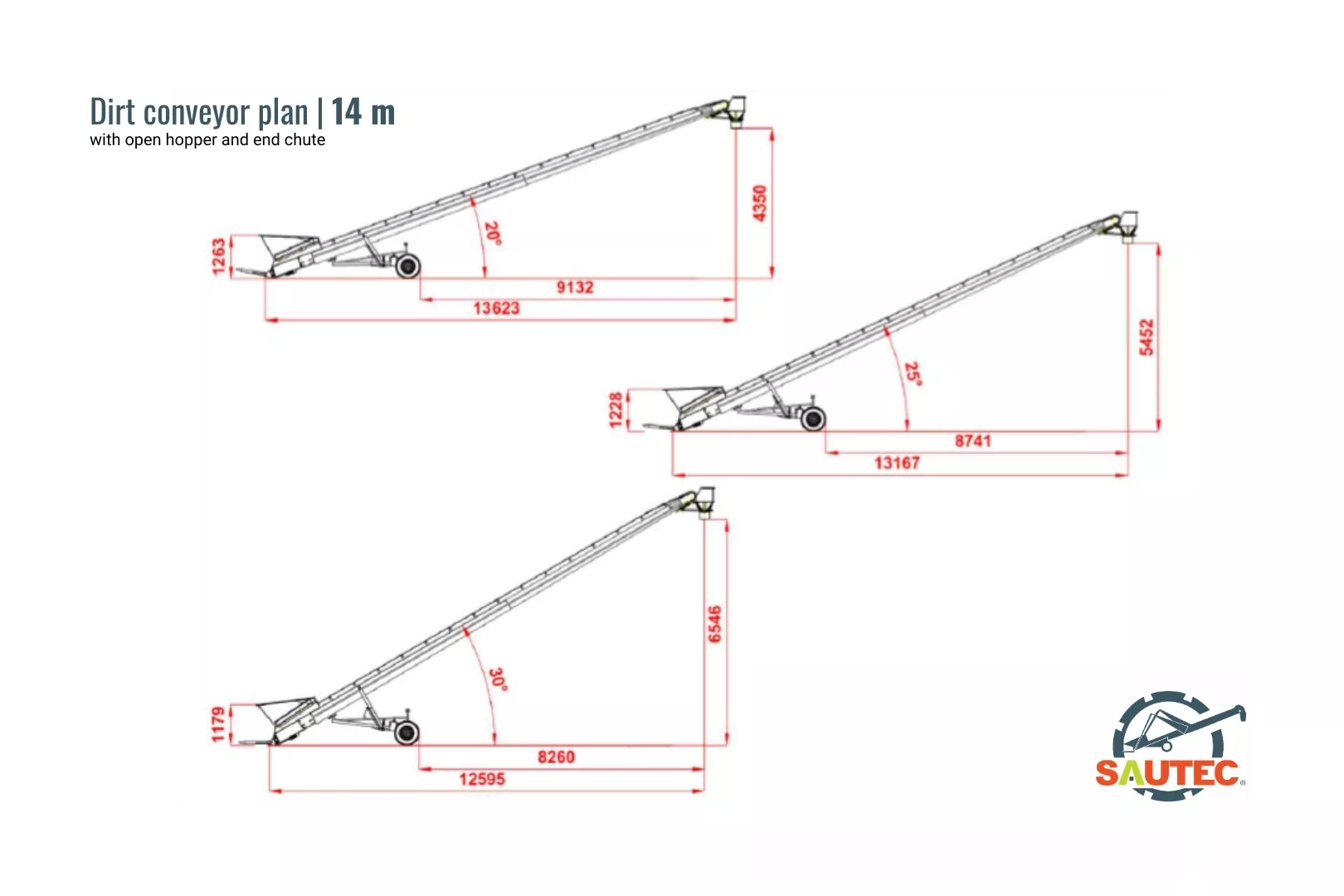

Five lengths are available for purchase and hire: 6 m, 8 m, 10 m, 12 m and 14 m. The choice of length depends mainly on the distance to be covered and the required discharge height. As a general rule, we recommend not exceeding a 25° angle of inclination. For a 14 m conveyor at a 25° angle, the discharge height is 5.5 m. Our team is at your service to determine the most appropriate conveyor length for your needs.
Is the dirt conveyor easy to move around on a construction site?
Yes. The dirt conveyor is equipped with wheels, a drawbar and lifting rings. You can tow or lift the conveyor to move/reposition it easily.
Is training required to operate the dirt conveyor?
No. The dirt conveyor can be used immediately by your teams. Start-up instructions are provided with the equipment.
