Container tipper

Basculeur de conteneur sautec pour le chargement des conteneurs

Home » Produits » Container tipper

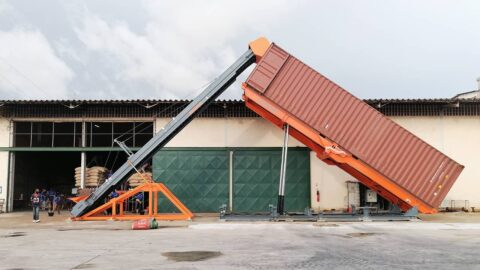

The power of gravity for bulk loading of sea containers.

Make the choice for cost-effectiveness with the SAUTEC 2-in-1 containers tipper.

The new SAUTEC tilting container loader uses the power of gravity to optimise the loading of bulk products into your stuffing container. 2-in-1, we have developed a containers tipper able to tilting standard 20ft and 40ft containers. An innovative and versatile SAUTEC equipment to fill your entire container quickly and safely with a wide variety of products. An ideal solution for maximising containers output and loading.

Estimate

a container from the sautec tilting container

More infos
Tech. datas

More infos

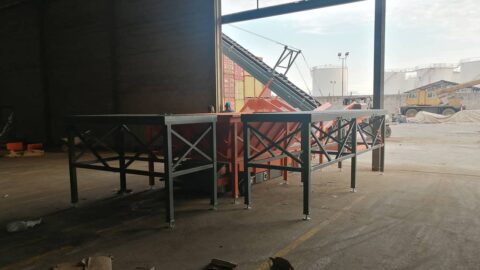

Platform for cutting cocoa bagsPlatform for cutting cocoa bagsPlatform for cutting cocoa bags

A range of containers tilting loaders to meet your exact requirements.

In order to optimise your maritime containers loading and unloading operations and to meet your requirements, we have developed a complete range of containers tippers :

20′, 30′ and 40′ containers tippers for loading.
20′, 30′ and 40′ containers tippers for unloading.
2-in-1 tipper containers for 20′ and 40′ containers for loading.

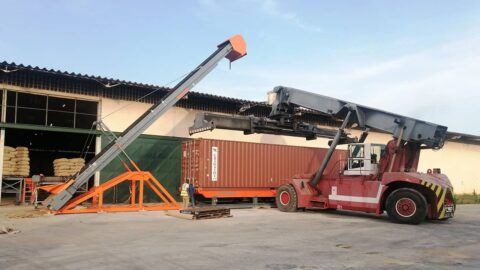

Depending on your needs, the container can be placed on the tipping frame directly with a standard trailer or with the help of suitable handling equipment (forklift truck, crane, reachstaker).

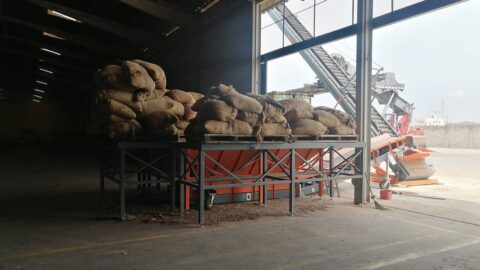

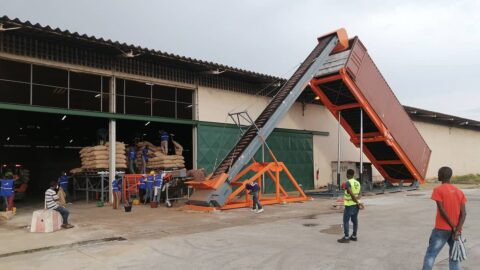

A complete system for bulk loading of cocoa beans that has proven itself in Africa.

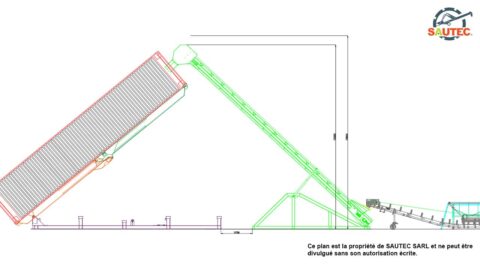

For the loading of cocoa bean containers, we have a complete system, from bag opening to bulk stuffing. The containers tipper, combined with a bag cutting platform and a loading belt conveyor, offers you a complete solution for container stuffing with many benefits : time saving, safety, reduction of difficult tasks for the operators and competitiveness.

Tech. datas

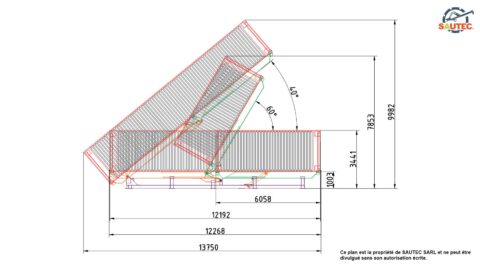

Tipper container lenght: 12.27m
Tipper container width:
Tipper height with a 40′ container tilted at 40° : 9.98m
Maximum tilt of a 20′ container: 60°
Maximum tilt of a 40′ container : 40°
Transportable floor-standing unit. The equipment can be easily dismantled and moved. It can also be installed anywhere provided that there is a flat concrete slab.
Adjustable tilting of the containers by 2 telescopic cylinders equipped with parachute valve to prevent pressure losses and oil leaks.
30 Kw motorised hydraulic unit powered by a three-phase electric motor.
Electrical distribution unit equipped with all necessary electrical components (contractors, fuses, motor brake switches) also acting as an electrical control unit with main control functions.
5 emergencies stop button for operator safety.
Container locking device.
Lifting plates with weight and center of gravity indication for easy manoeuvring and safety during delivery.
Painted steel assembly
Operating instructions manual
Complies with EC standards according to directive 2006/42 EC Annex II-1-A on stand-alone equipment.
